Fièrement fabriqué au Canada
Custom Compression
Springs Manufacturer in Canada
Precision-Engineered Compression Springs
for OEMs, Industrial Equipment, Automotive, Medical, Mining, Oil & Gas, Agriculture, Aerospace, and Advanced Manufacturing Applications.
Il existe plusieurs types de ressorts de compression adaptés à diverses applications. Ils sont souvent utilisés comme accumulateurs d'énergie, amortisseurs de chocs, amortisseurs de vibrations ou générateurs de force.
L'équipe expérimentée d'OmniCoil Spring Works Inc. se spécialise dans la conception et la fabrication de ressorts de compression sur mesure pour les entreprises et les industries du Canada et du monde entier. Nous sommes fiers de concrétiser vos idées grâce à nos techniques modernes et à notre savoir-faire traditionnel. Nous pouvons travailler avec une vaste gamme de diamètres de fil, à partir de 0,08 pouce, et dans des matériaux tels que :
☑ Acier inoxydable
☑ Fil de musique
☑ Silicium chromé
☑ Tirage dur
☑ Fil trempé à l'huile
☑ 5160 H
☑ 4161 H
☑ Cuivre au béryllium
☑ Chrome vanadium
☑ Hastelloy
☑ Inconel
☑ Bronze phosphoreux
☑ Elgiloy
☑ Titane
☑ Monel
☑ Cuivre
Nous pouvons également fabriquer des ressorts de compression sur mesure à partir de matériaux spéciaux, à la demande du client.
Why OmniCoil
?
01
Custom Compression Springs Manufactured to Your Specifications
02
Prototype, Short-Run, and High-Volume Production Capabilities
03
Wide Range of Spring Materials Including Stainless Steel, Music Wire, Chrome Silicon, and Specialty Alloys
04
Precision CNC Coiling and Advanced Manufacturing Technology
05
Engineering Support for Design Optimization and Material Selection
06
Tight Tolerances and Consistent Quality Control
07
Fast Turnaround Times and Reliable Delivery
08
Proudly Manufactured in Canada Since 2008

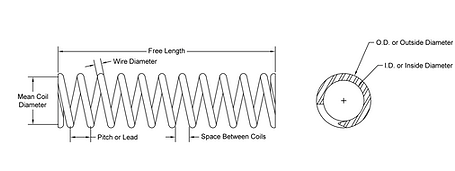

Qu'est-ce qu'un ressort de compression ?
Un ressort de compression est un ressort hélicoïdal à spires ouvertes qui offre une résistance à la compression axiale. Il peut être cylindrique, conique, en forme de tonneau ou même concave. Il existe quatre types d'extrémités : fermées et rectifiées, fermées uniquement, ouvertes uniquement et ouvertes et rectifiées.
How Compression Springs Work?
Compression springs convert external mechanical force into stored elastic energy. As the spring is compressed, the wire experiences torsional stress while the coils move closer together. The amount of force generated depends on several engineering factors, including:
-
Wire diameter
-
Outside and inside diameter
-
Free length
-
Number of active coils
-
Spring rate (spring constant)
-
Material properties
-
Coil pitch
-
End configuration
These variables determine the spring's load capacity, maximum deflection, fatigue life, and overall performance. Proper engineering ensures that the spring operates within its elastic range, preventing permanent deformation while maintaining consistent force over its intended service life.
Whether used in lightweight consumer products or heavy-duty industrial machinery, accurately designed compression springs provide dependable performance under repeated loading conditions.
Why Compression Springs Are Essential in Modern Engineering
Compression springs are found in virtually every industry because they offer a simple, reliable, and cost-effective solution for controlling mechanical movement and managing applied forces. Their versatility allows engineers to address a wide range of functional requirements, including:
-
Absorbing shock and impact loads
-
Reducing vibration and mechanical noise
-
Maintaining constant pressure between components
-
Returning moving parts to their original position
-
Supporting static and dynamic loads
-
Protecting equipment from excessive force
-
Compensating for dimensional variations and thermal expansion
-
Providing precise linear force in automated systems
From high-speed manufacturing equipment to precision medical devices, compression springs improve equipment reliability, operational safety, and product longevity while reducing maintenance requirements.
Engineered for Demanding Applications
Every application presents unique operating conditions, making custom spring design essential for achieving optimal performance. Factors such as operating temperature, corrosion exposure, available installation space, cyclic loading, required spring rate, and environmental conditions all influence the final spring design.
Our engineering team works closely with customers to develop custom compression springs tailored to their specific application requirements. We manufacture springs in a wide range of wire diameters, coil sizes, materials, and configurations using advanced CNC coiling technology and rigorous quality control processes.
Whether you require prototype compression springs, short production runs, or high-volume manufacturing, every spring is produced to meet precise dimensional tolerances, consistent load characteristics, and long-term durability expectations.
- OmniCoil Spring Works Inc
Precision Manufacturing for Consistent Performance
The performance of a compression spring depends not only on its design but also on manufacturing precision. Even small variations in wire diameter, coil spacing, heat treatment, or end grinding can significantly affect spring rate, load accuracy, and fatigue life.
OmniCoil manufactures precision compression springs using premium spring materials, advanced manufacturing equipment, and comprehensive inspection procedures to ensure every spring consistently meets customer specifications. From initial design consultation through production and quality verification, our focus is delivering reliable spring solutions that perform in the most demanding industrial environments.
Whether your project requires corrosion-resistant stainless steel springs, high-strength chrome silicon springs, heat-resistant Inconel® springs, or fully custom-engineered solutions, OmniCoil provides the expertise and manufacturing capabilities to support applications across automotive, aerospace, medical, oil and gas, mining, agriculture, industrial automation, electronics, and heavy equipment industries.
Compression Spring Applications Across Industries
Compression springs are essential components in countless mechanical and electromechanical systems, providing controlled force, energy storage, shock absorption, vibration isolation, and precise return motion. Their versatility allows engineers to incorporate them into products ranging from miniature medical instruments to large-scale industrial machinery, where reliable and repeatable performance is critical.
At OmniCoil Spring Works Inc., we manufacture custom compression springs for OEMs, equipment manufacturers, maintenance providers, and industrial distributors across North America. Our springs are engineered to meet the unique performance, durability, and environmental requirements of each application, ensuring consistent operation under demanding conditions.
Types of Compression Springs
Compression springs are available in various configurations, each engineered to meet specific load requirements, space constraints, and performance objectives. Selecting the right spring design improves reliability, extends service life, and optimizes equipment performance. At OmniCoil Spring Works Inc., we manufacture a wide range of custom compression springs to suit virtually any industrial or commercial application.
Photo | Spring Type | Description | Key Advantages | Common Applications |
|---|---|---|---|---|
Variable Pitch Compression Springs | Manufactured with varying distances between adjacent coils to produce a progressive spring rate during compression. | Progressive load characteristics, smoother force distribution, reduced impact loading, and improved shock absorption. | Suspension systems, precision machinery, agricultural equipment, and heavy-duty industrial applications. | |
Hourglass Compression Springs | Similar to barrel springs but with a smaller diameter at the center and larger diameters at the ends. Designed for enhanced flexibility and reduced resonance. | Improved vibration control, better lateral stability, lower operating noise, and compact installation. | Precision instruments, automotive components, electronic equipment, and aerospace assemblies. | |
Barrel Compression Springs | Features a larger diameter at the center and smaller diameters at both ends. This design improves lateral stability while reducing buckling under compression. | Greater stability, improved resistance to buckling, smoother operation, and longer fatigue life in dynamic applications. | Automotive suspension systems, heavy machinery, vibration isolation systems, and industrial equipment. | |
Conical Compression Springs | Designed with a progressively decreasing coil diameter, allowing the spring to telescope into itself during compression. | Saves installation space, reduces solid height, provides improved stability, and minimizes buckling. | Battery contacts, electrical switches, handheld devices, compact mechanical assemblies, and medical equipment. |
Compression Spring Materials
Selecting the right spring material is one of the most important factors in achieving reliable performance, long fatigue life, and resistance to environmental conditions. Material selection influences spring strength, corrosion resistance, operating temperature, wear resistance, and overall service life.
At OmniCoil Spring Works Inc., we manufacture custom compression springs using a wide range of high-quality carbon steels, alloy steels, stainless steels, and specialty alloys to meet the demands of virtually any application.
Material | Strength | Corrosion Resistance | Max Operating Temperature | Typical Application | Key Benefits |
|---|---|---|---|---|---|
Titanium Alloys | 4 | 5 | Up to 400°C (752°F) | Aerospace, defence, medical implants, marine systems | Lightweight, outstanding corrosion resistance, high strength-to-weight ratio. |
Music Wire (ASTM A228) | 5 | 2 | Up to 120°C (250°F) | General industrial equipment, automotive components, consumer products, machinery | Highest tensile strength, excellent fatigue life, economical, ideal for dynamic applications. |
Phosphor Bronze | 3 | 4 | Up to 200°C (392°F) | Electrical contacts, precision instruments, switches | Excellent electrical conductivity with good corrosion resistance. |
Chrome Silicon (ASTM A401) | 5 | 2 | Up to 250°C (482°F) | Racing, heavy-duty automotive, aerospace, mining equipment | Exceptional fatigue resistance and high-load performance. |
Compression Spring Engineering Specifications
The performance, durability, and reliability of a compression spring depend on carefully engineered specifications. Every dimension and material property influences how the spring responds to applied loads, withstands repeated cycling, and performs within its intended operating environment.
At OmniCoil Spring Works Inc., every custom compression spring is designed and manufactured to precise engineering specifications, ensuring consistent performance, tight dimensional tolerances, and long service life. Whether you require a prototype, replacement spring, or high-volume production run, our engineering team works closely with you to optimize every aspect of the spring design.
Specification | Description | Engineering Importance |
|---|---|---|
Wire Diameter (d) | The diameter of the spring wire used to manufacture the spring. | One of the most critical design parameters, directly affecting spring rate, strength, fatigue life, and maximum load capacity. |
Outside Diameter (OD) | The overall diameter measured across the outside of the spring coils. | Determines installation clearance and compatibility with surrounding components or housings. |
Inside Diameter (ID) | The diameter measured across the inside of the spring coils. | Important when the spring fits over shafts, guide rods, or other internal components. |
Free Length (L₀) | The overall length of the spring when no external load is applied. | Establishes available working deflection and installed preload requirements. |
Engineering Considerations
for
Custom Compression Springs
Designing a high-performance compression spring requires balancing multiple engineering variables. A change to one specification often affects several others. For example, increasing the wire diameter increases load capacity but also increases the spring rate and required operating force.
When developing a custom compression spring, our engineers evaluate factors such as:
-
Required operating load and working height
-
Available installation space
-
Maximum travel and working deflection
-
Fatigue life and expected cycle count
-
Buckling resistance
-
Operating temperature
-
Corrosive or outdoor environments
-
Vibration and impact loading
-
Manufacturing tolerances
-
Industry-specific standards and certifications
By optimizing these factors during the design phase, we help customers improve product reliability, reduce premature spring failure, and lower overall manufacturing costs.
- OmniCoil Spring Works Inc
Advanced Compression Spring Manufacturing Capabilities
At OmniCoil Spring Works Inc., we combine decades of spring manufacturing expertise with advanced production technology to deliver custom compression springs that meet the highest standards of precision, consistency, and reliability. From prototype development to high-volume production, every spring is manufactured using proven engineering practices, modern CNC coiling equipment, and comprehensive quality control procedures.
Our flexible manufacturing capabilities enable us to support customers across a wide range of industries, including automotive, industrial automation, aerospace, medical, mining, oil and gas, agriculture, defence, transportation, and heavy equipment.
Capability | Description | Customer Benefits |
|---|---|---|
Wide Range of Wire Sizes | Manufacturing capability for a broad range of wire diameters and spring dimensions to suit miniature, standard, and heavy-duty applications. | Supports diverse industries and custom designs without compromising performance or quality. |
Advanced CNC Spring Coiling | Computer-controlled CNC spring coiling machines produce compression springs with exceptional dimensional accuracy and repeatability. | High precision, consistent spring rate, reduced variation, and efficient production of complex spring geometries. |
High-Volume Production Runs | Scalable manufacturing for OEMs requiring consistent quality across thousands or millions of compression springs. | Competitive pricing, repeatable quality, dependable supply, and reliable delivery schedules |
Short Production Runs | Cost-effective manufacturing for low-volume orders, engineering changes, replacement components, and specialized equipment. | Flexible order quantities with fast turnaround and reduced inventory costs. |
Surface Finishes for Compression Springs
The right surface finish can significantly improve the performance, durability, and service life of a compression spring. Depending on the application, surface treatments can enhance corrosion resistance, increase fatigue life, reduce friction, improve appearance, or provide additional protection against harsh operating environments.
At OmniCoil Spring Works Inc., we offer a variety of surface finishes and protective coatings for custom compression springs to meet the environmental, mechanical, and regulatory requirements of virtually any industry.
Surface Finish | Purpose | Key Benefits | Typical Applications |
|---|---|---|---|
Shot Peening | Controlled impact process that introduces beneficial compressive stresses into the spring surface. | Significantly improves fatigue life, increases resistance to cyclic loading, reduces crack initiation, enhances durability. | Automotive suspension systems, aerospace components, racing applications, mining equipment, heavy-duty industrial springs. |
E-Coating (Electrophoretic Coating) | Uniform electrically applied protective coating that provides complete surface coverage, even on complex geometries. | Excellent corrosion protection, consistent coating thickness, smooth finish, environmentally friendly process. | Automotive components, heavy equipment, industrial machinery, OEM assemblies, transportation equipment. |
Powder Coating | Durable thermoset polymer coating applied electrostatically and cured under heat. | Excellent abrasion resistance, weather protection, chemical resistance, decorative appearance, available in multiple colours. | Outdoor equipment, agricultural machinery, industrial products, architectural hardware, consumer products. |
Passivation | Chemical treatment applied to stainless steel springs to remove surface contaminants and enhance the natural chromium oxide layer. | Superior corrosion resistance, improved cleanliness, enhanced stainless steel durability, no dimensional change. | Medical devices, food processing, pharmaceutical equipment, marine applications, chemical processing. |
